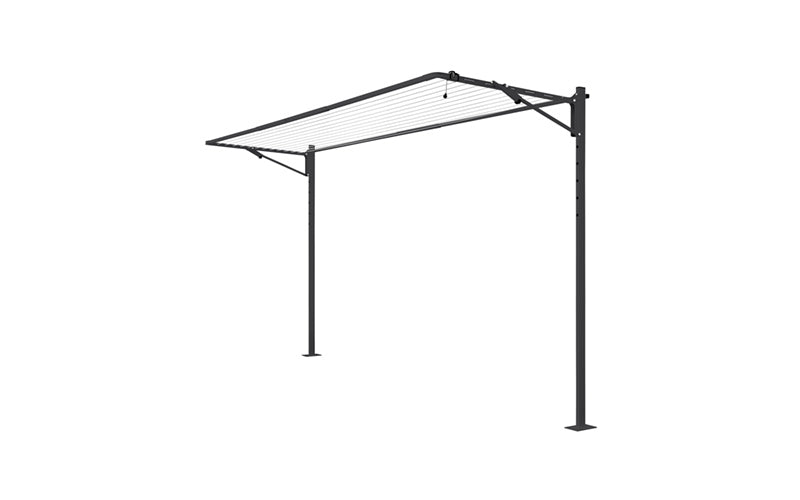

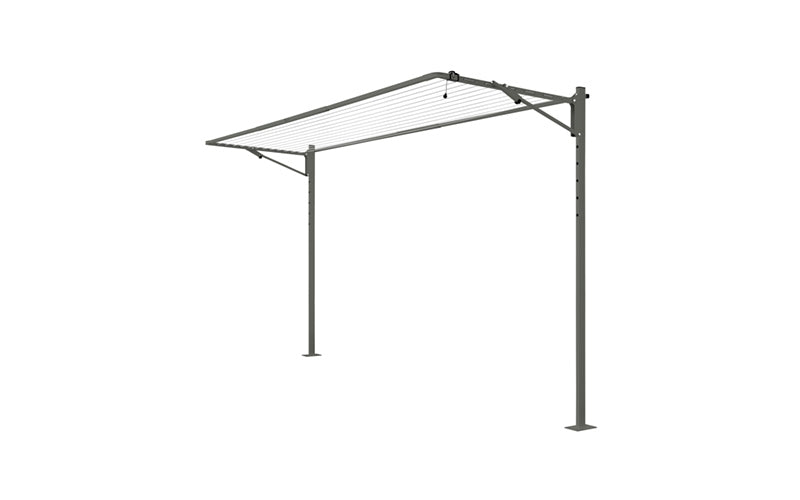

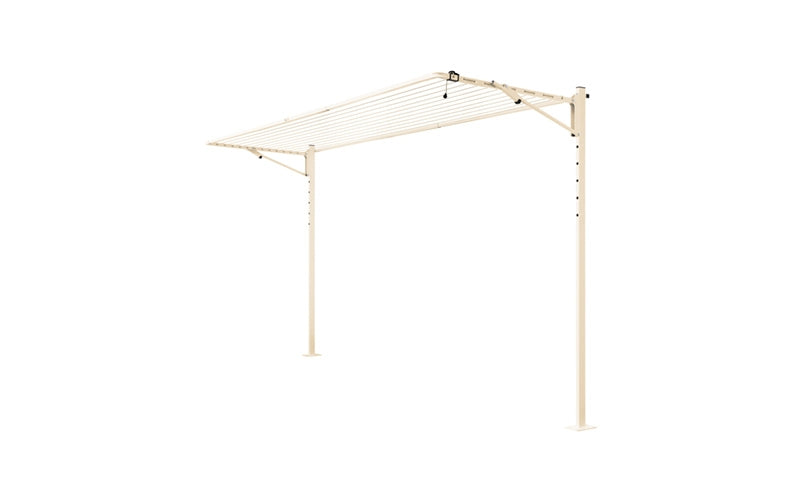

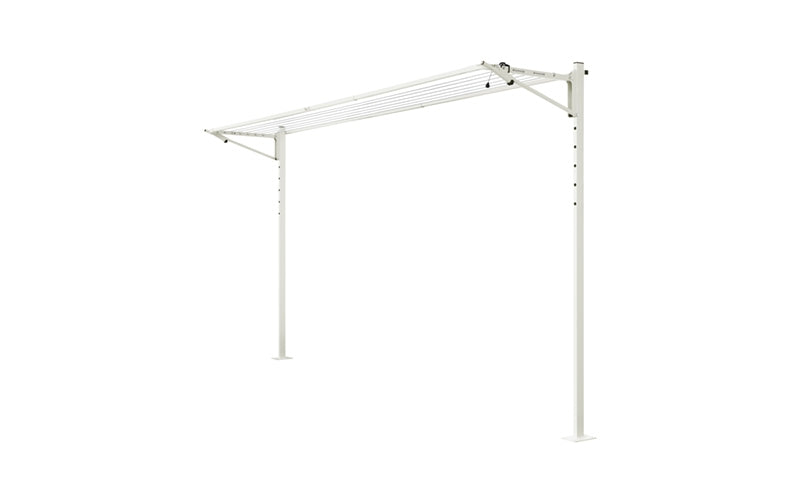

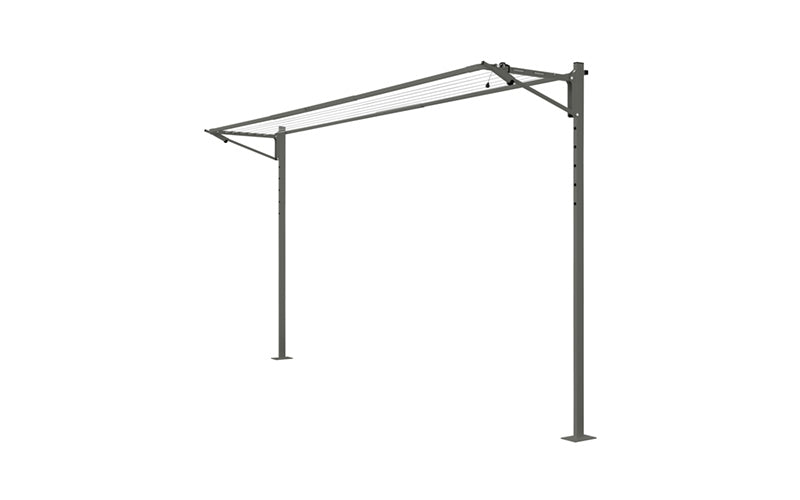

Will convert a Compact 39 and Slenderline 20 to a free standing clothes line. Suitable for hard surface installations.
Compact 39
Slenderline 20
VIDEO
General Specifications:
Multi punched posts allow for height adjustment if required.

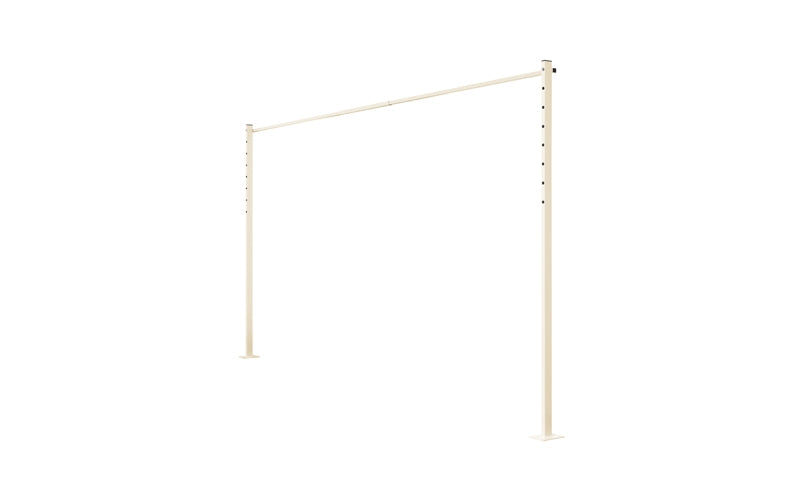

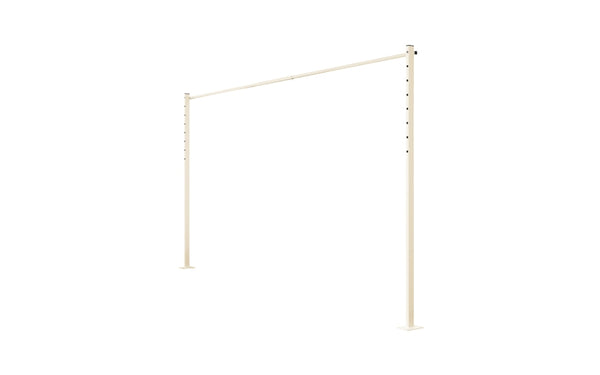

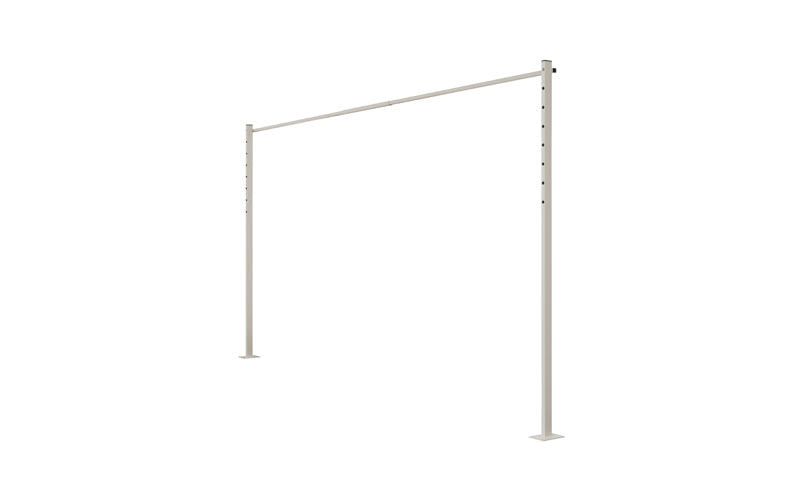

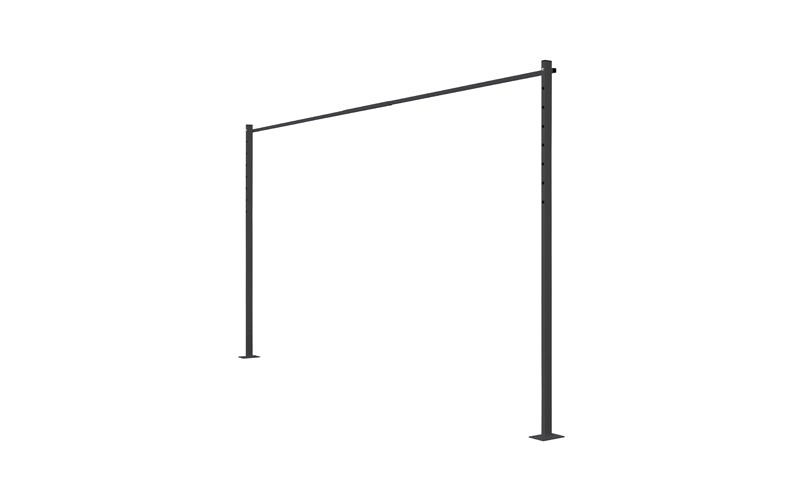

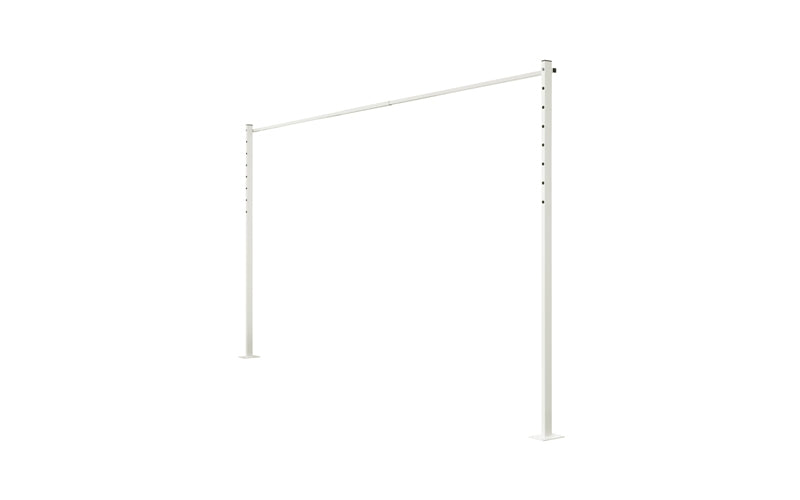

Each Ground Mount Kit contains 2x Plated Posts (welded base plate) and 1x Back Bar
Fittings supplied: 2x M6x90mm bolts, 2x M6x60mm bolts, 8x M6x16mm washers, 4x M6 nuts
You will require: 8x M6 galvanised masonry screws/screw bolts (min. embedment 45mm), 8x M6 galvanised washers, safety glasses, hammer drill, 6mm masonry bit, packers (if sloped ground), 2x 10mm spanners/sockets, spirit level, tape measure, knife, pencil
Note: For larger M8 fixings use 8mm masonry bit and 13mm spanners. Refer to Manufacturer's TDS (Technical Data Specifications) for further information.
Optional 3.3m Ground Mount Kit available for in ground installation
Resource: Installation Guide
Dimensions:
Post Dimensions: 1.91m x 5cm x 2.5cm
Welded Plate Dimensions: 10cm x 15cm x 0.6cm
Back Bar Length: 3.33m
Fixing Height: 1.86m
Suitable for use with: Compact 39 Slenderline 20
Packaging:
Total box size: 2.5m x 17cm x 12cm
Total packaged weight: 10.5kg
