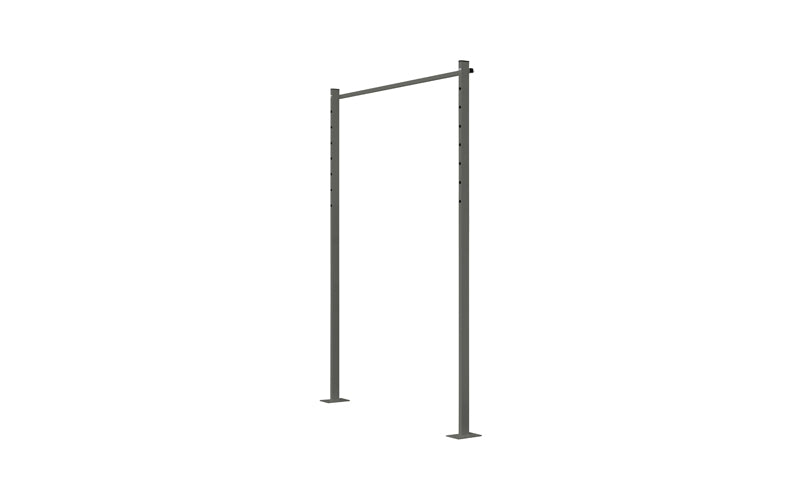

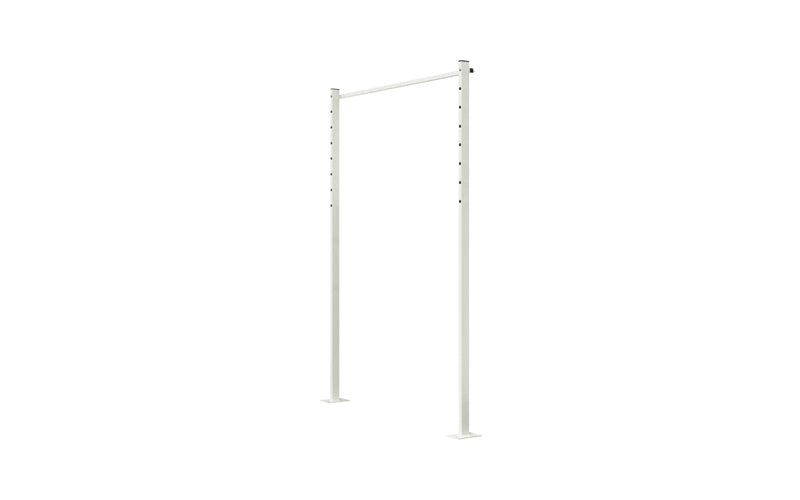

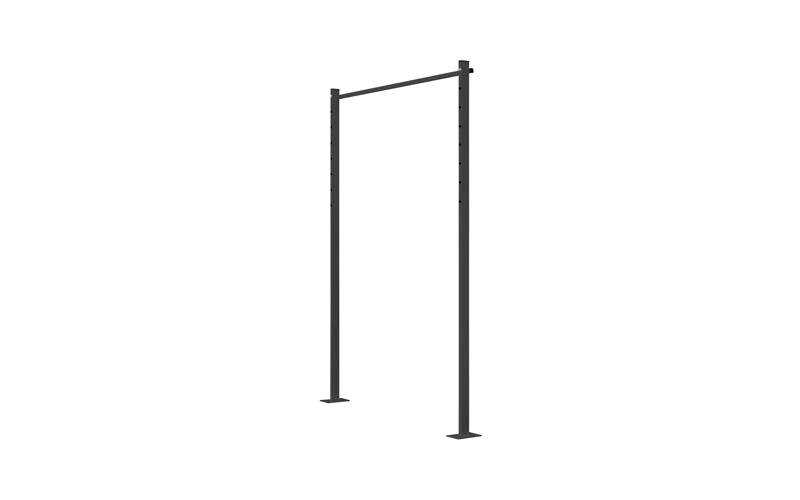

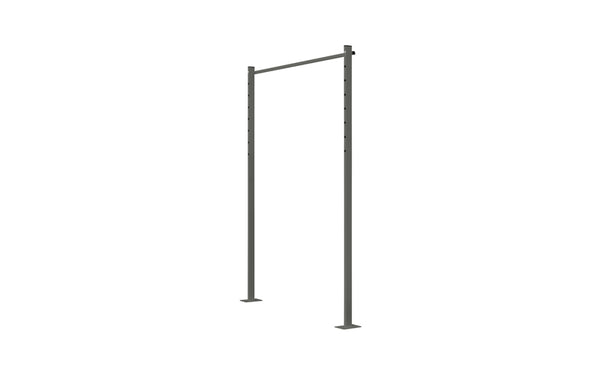

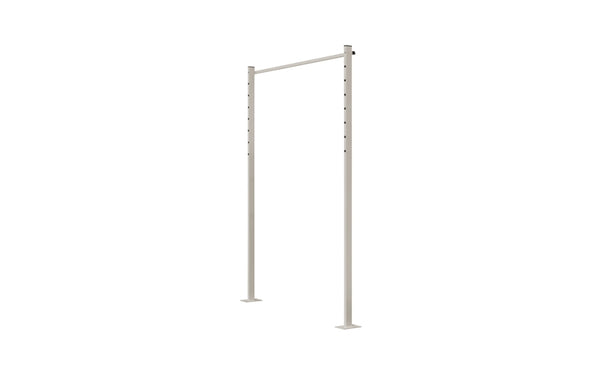

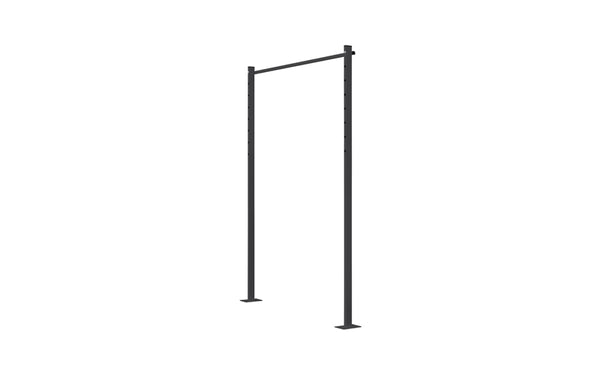

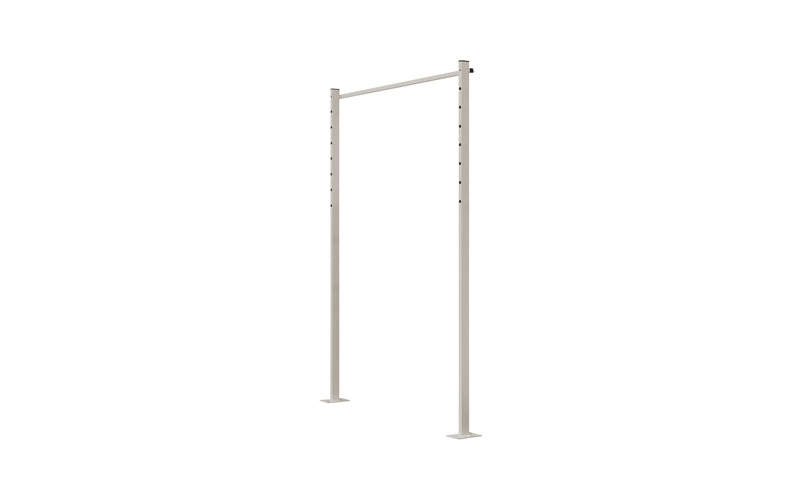

Plated Ground Mount Kit 1.3m

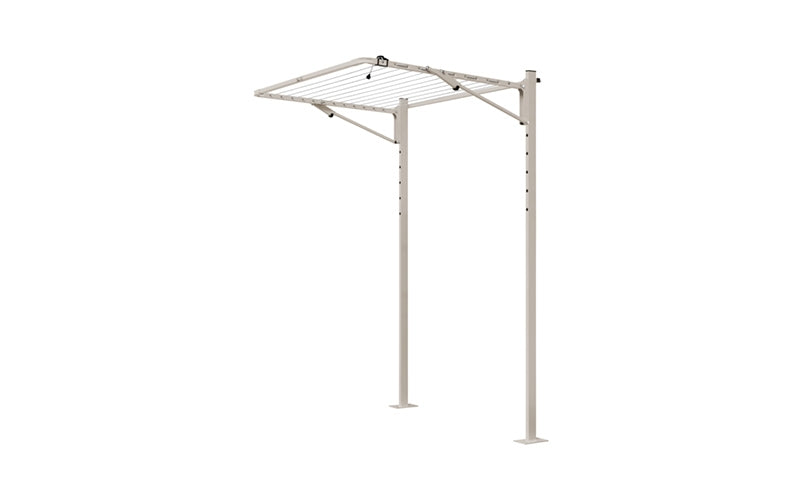

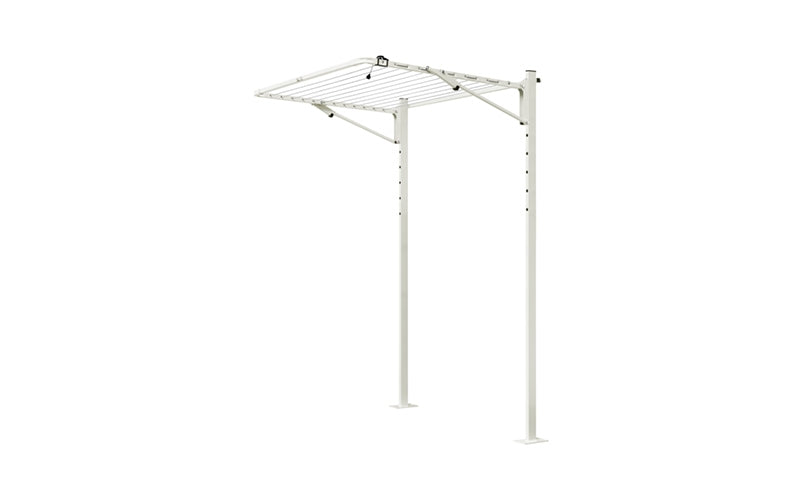

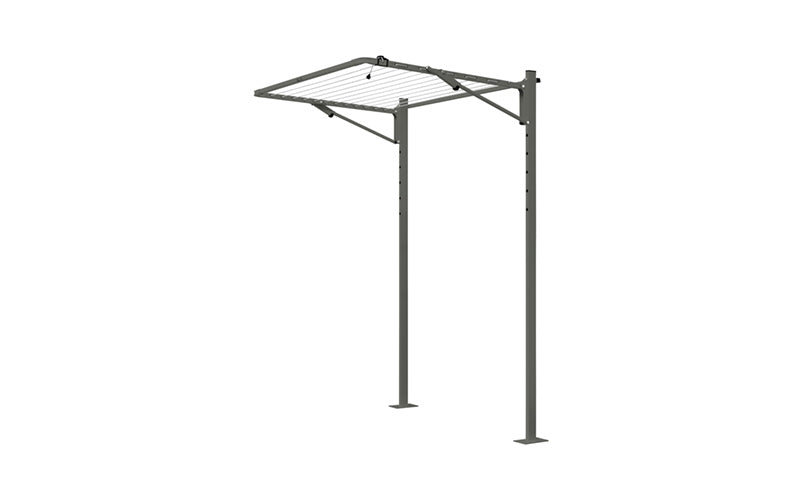

Will convert a Unit Line to a free standing clothes line. Suitable for hard surface installations.

• Unit Line

General Specifications:

• Multi punched posts allow for height adjustment if required
• Each Ground Mount Kit contains 2 x Plated Posts and 1x Back Bar
• Fittings Supplied: 2x M6x90mm bolts, 2x M6x60mm bolts, 8x M6x16mm washers, 4x M6 nuts
• You will require: 8x M6 galvanised masonry screws/screw bolts (min. embedment 45mm), 8x M6 galvanised washers, safety glasses, hammer drill, 6mm masonry bit, packers (if sloped ground), 2x 10mm spanners/sockets, spirit level, tape measure, knife, pencil.
• Note: For larger M8 fixings use 8mm masonry bit & 13mm spanners. Refer to Manufacturer’s TDS (Technical Data Specifications) for further information.
• Optional 1.3m Ground Mount Kit available for in ground installation

Resource: Installation Guide

Dimensions:

• Post Dimensions: 1.91m x 5cm x 2.5cm
• Welded Plate Dimensions: 10cm x 15cm x 0.5cm
• Back Bar Length: 1.32m
• Fixing Height: 1.86m
• Suitable for use with: Unit Line

Packaging:

• Total box size: 2.5m x 1.7m x 1.2m
• Total packaged weight: 8.7 kg
